Harvester machine EU 3000
Harvesting machine EU 3000
Click on the image to view additional models from the HARVESTING category

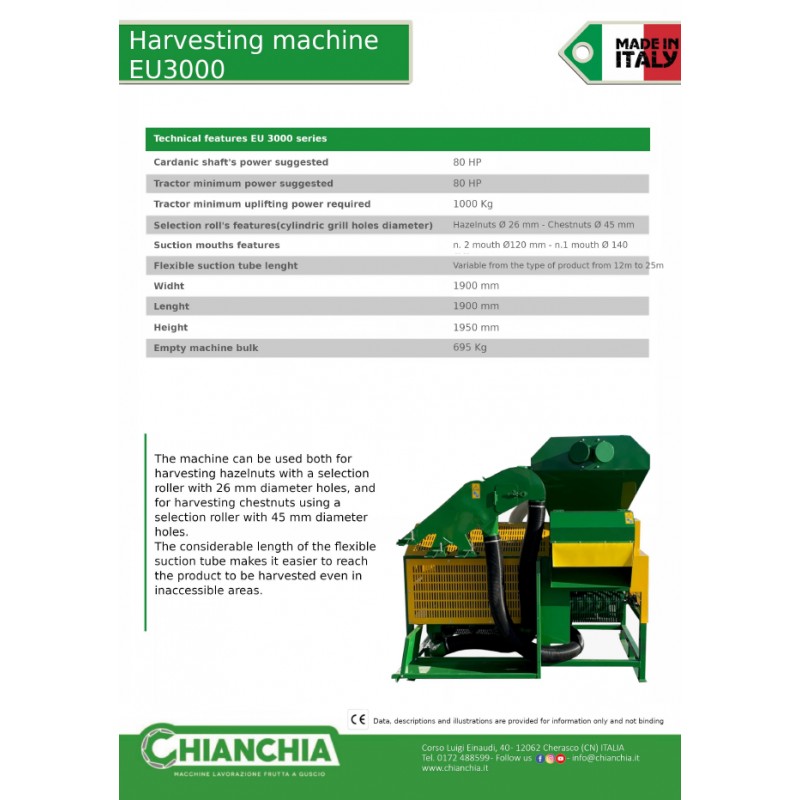

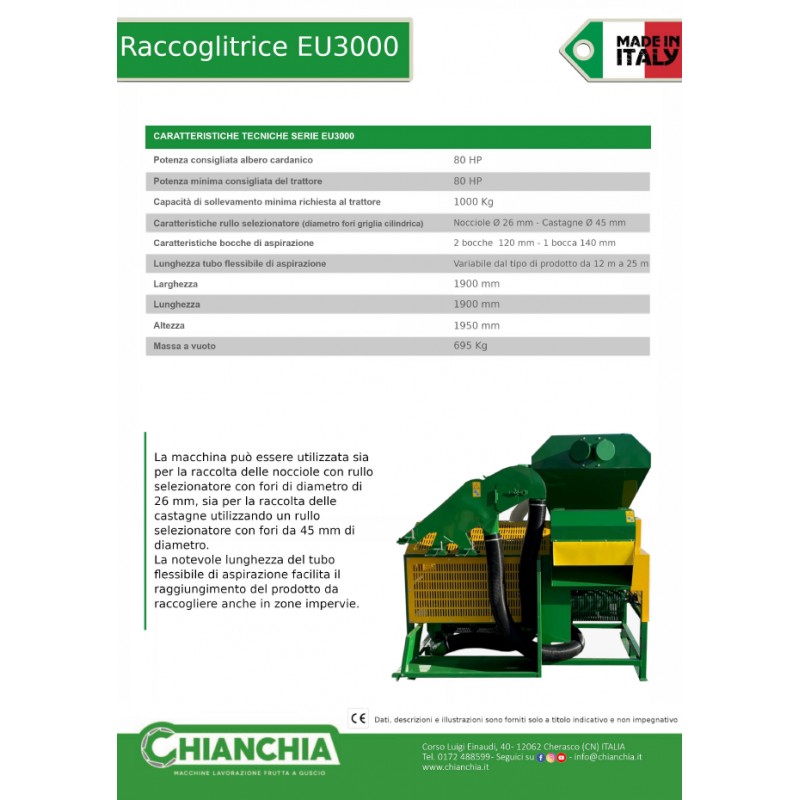

Data sheet
| Suction hose length | Variable from the type of product from 12m to 25m |
| Suction port characteristics | n. 2 mouth Ø120 mm - n.1 mouth Ø 140 mm |
| Selector roller characteristics (cylindrical grid hole diameter) | Hazelnuts Ø 26 mm - Chestnuts Ø 45 mm |
| Minimum tractor power | 80 Hp |
| Cardanic shaft's power suggested | 80 Hp |
| Length mm. | 1900 mm |
| Width mm. | 1900 mm |
| Height mm. | 1950 mm |
| Weight Kg | 695 Kg |
More info

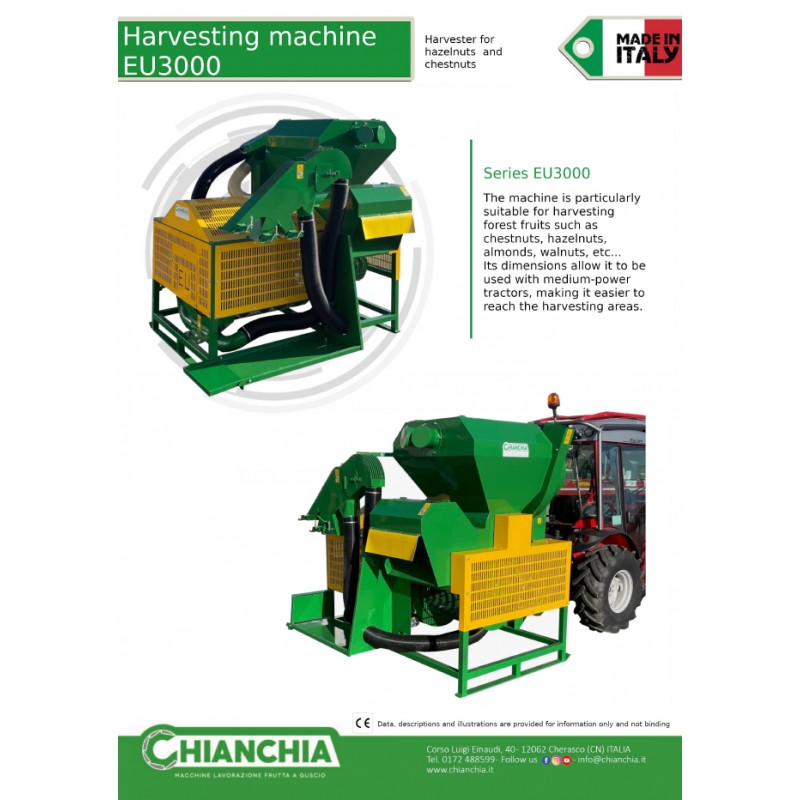

The machine is particularly suitable for harvesting forest fruits such as chestnuts, hazelnuts, almonds, walnuts, etc...
Its dimensions allow it to be used with medium-power tractors, making it easier to reach the harvesting areas.
The machine can be used both for harvesting hazelnuts with a selection roller with 26 mm diameter holes, and for harvesting chestnuts using a selection roller with 45 mm diameter holes.
The considerable length of the flexible suction tube makes it easier to reach the product to be harvested even in inaccessible areas.
